FEATURED 2023 Ranger Boats Z520R Ranger Cup Equipped - RG360

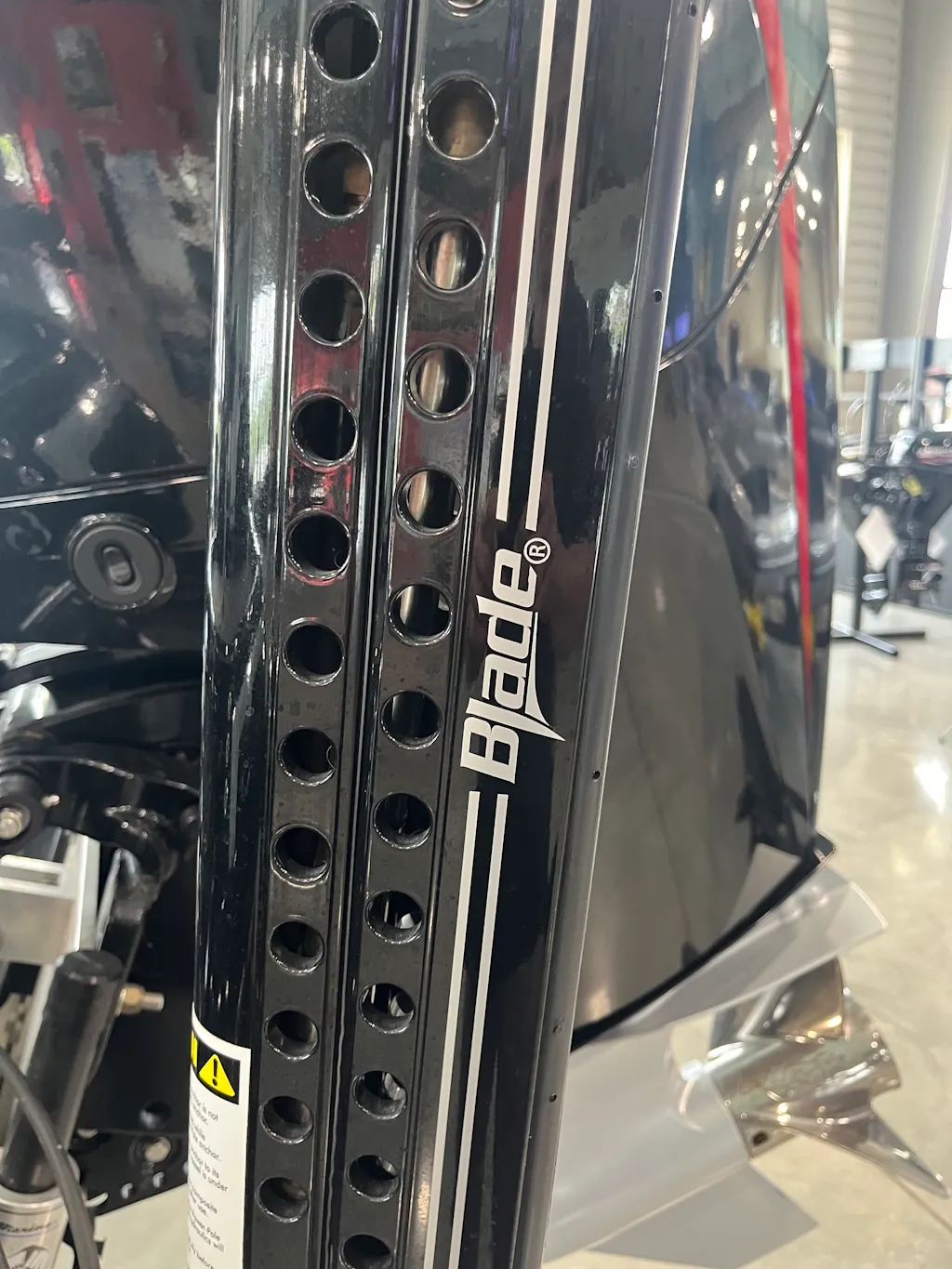

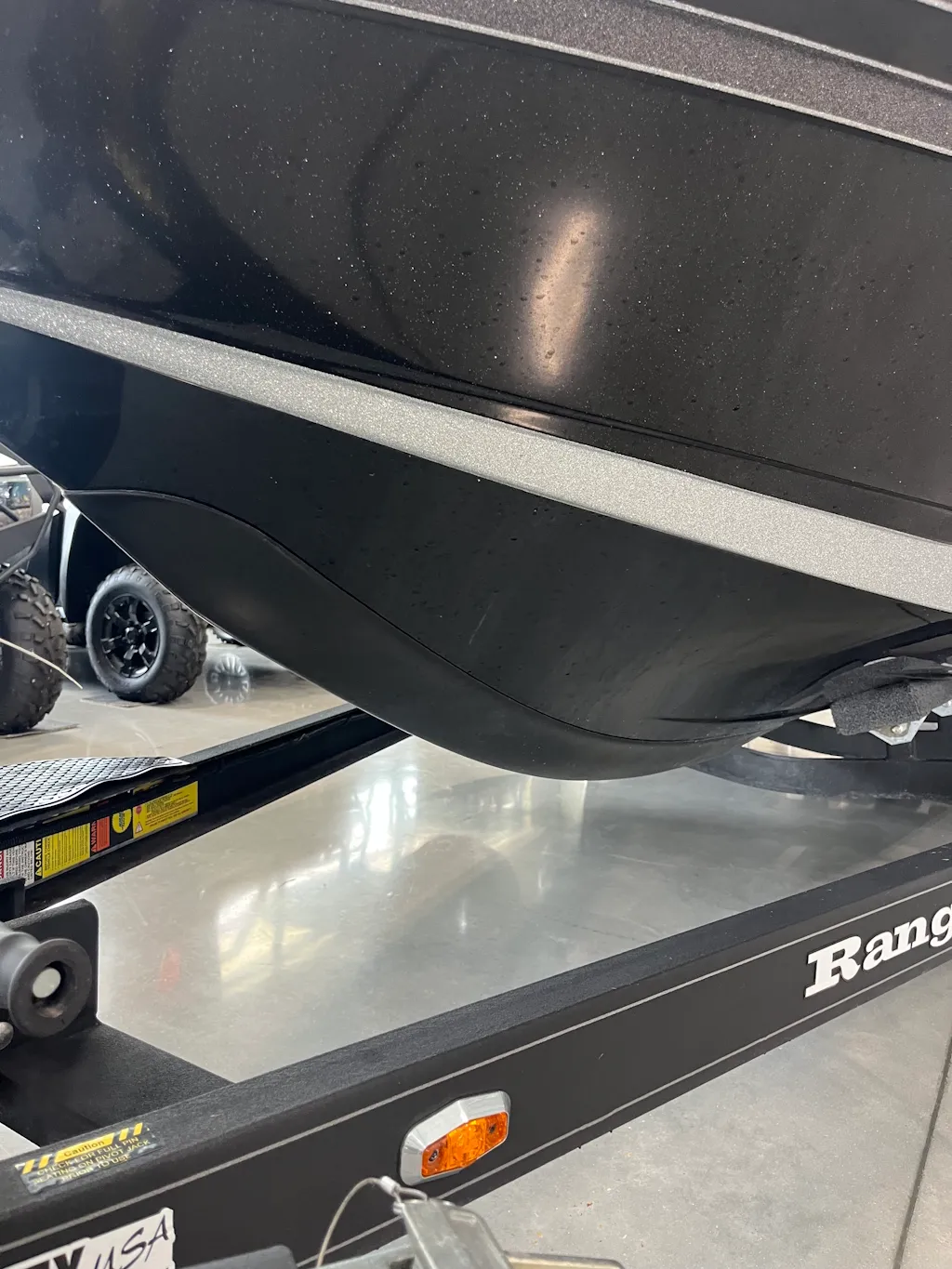

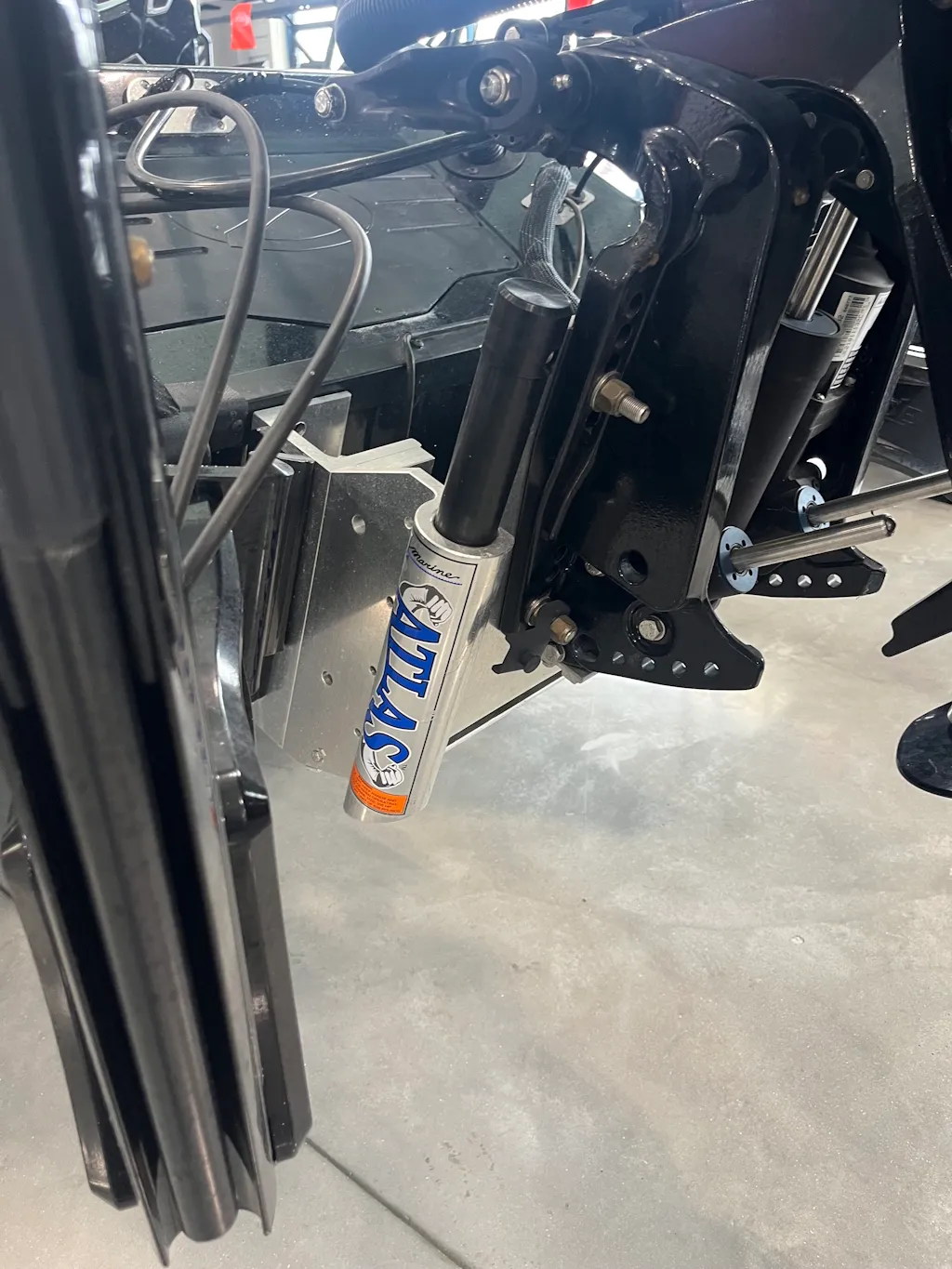

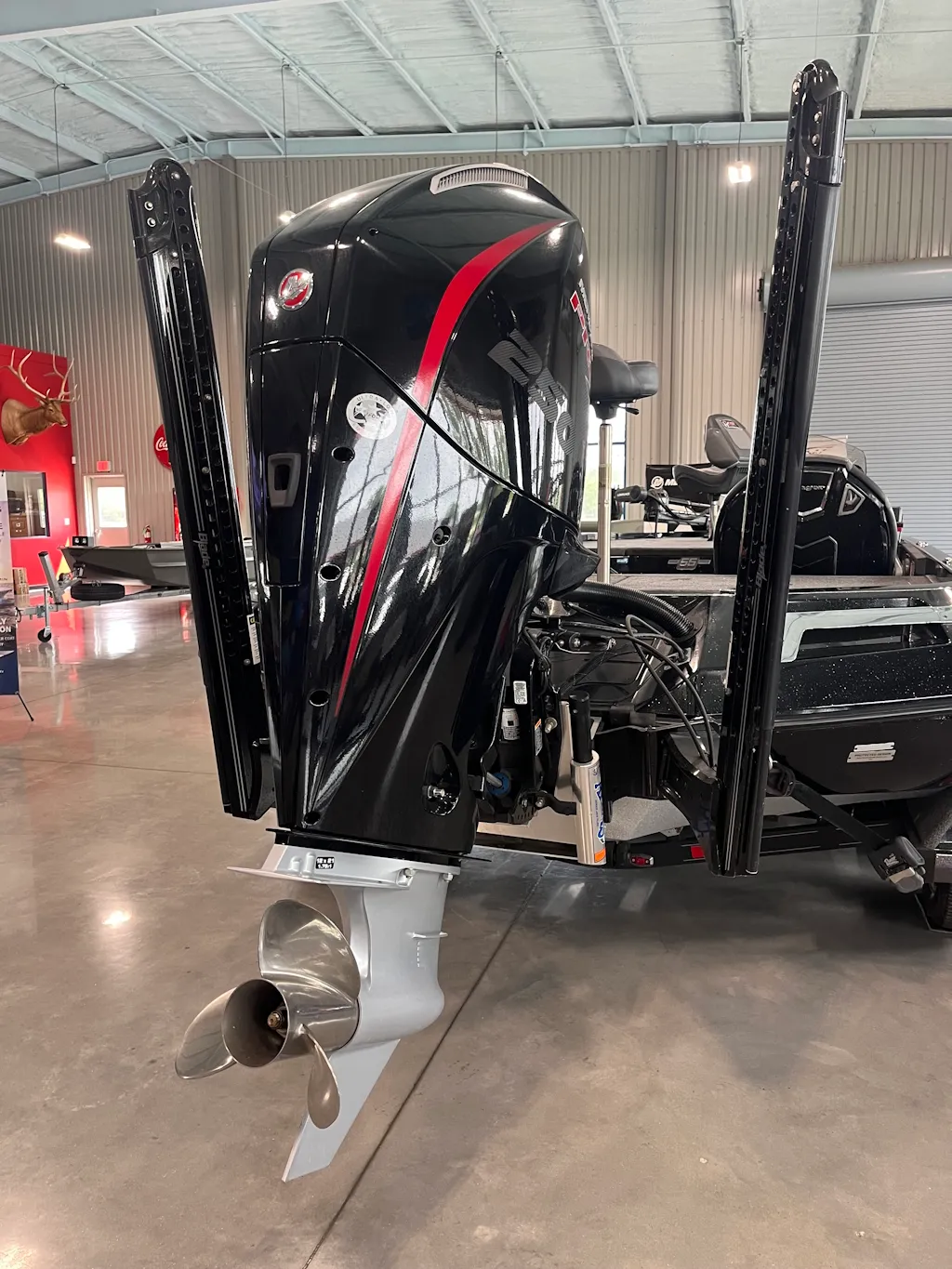

Options Included: Boat Cover, Keel Protector (Black), Hydraulic Jackplate, Dual Trim Lever, & Dual 8' Blades w/ Advanced Foot Switch

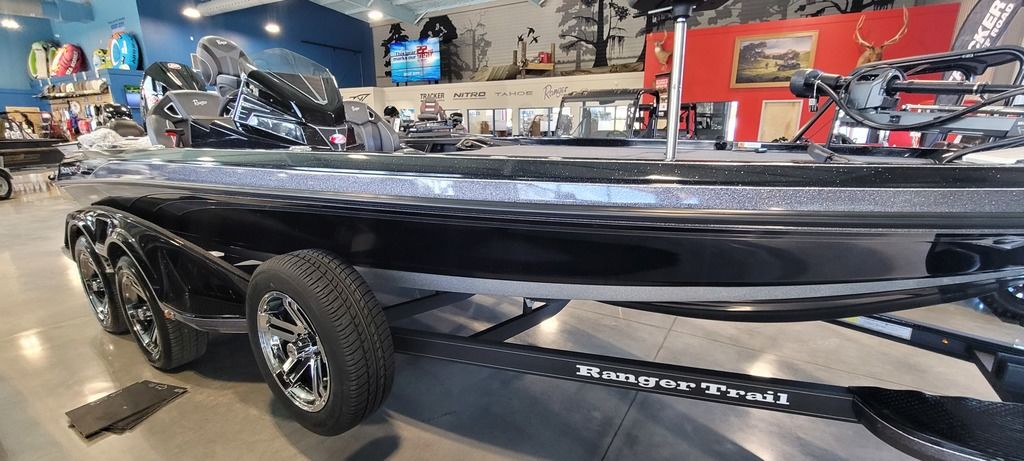

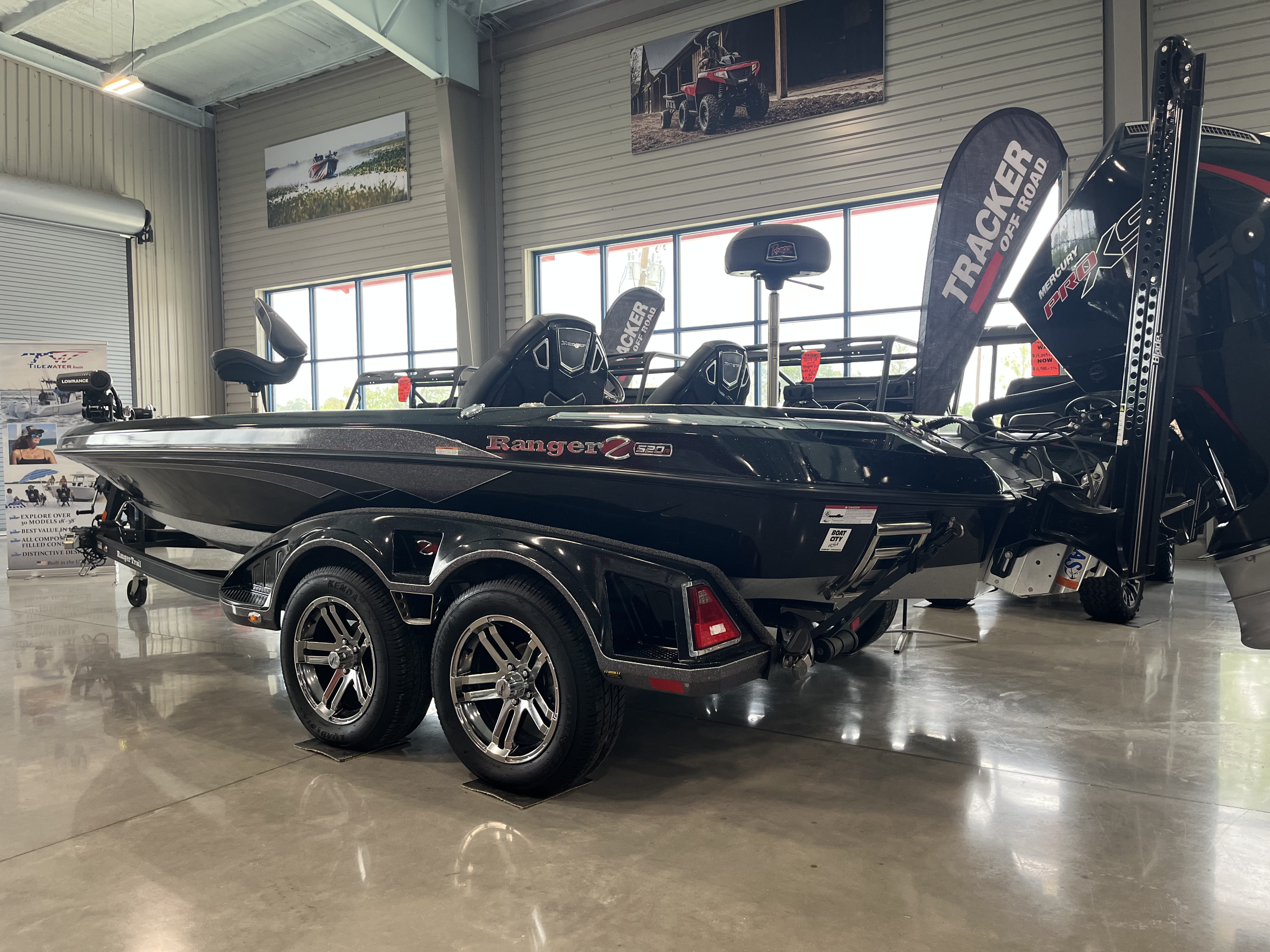

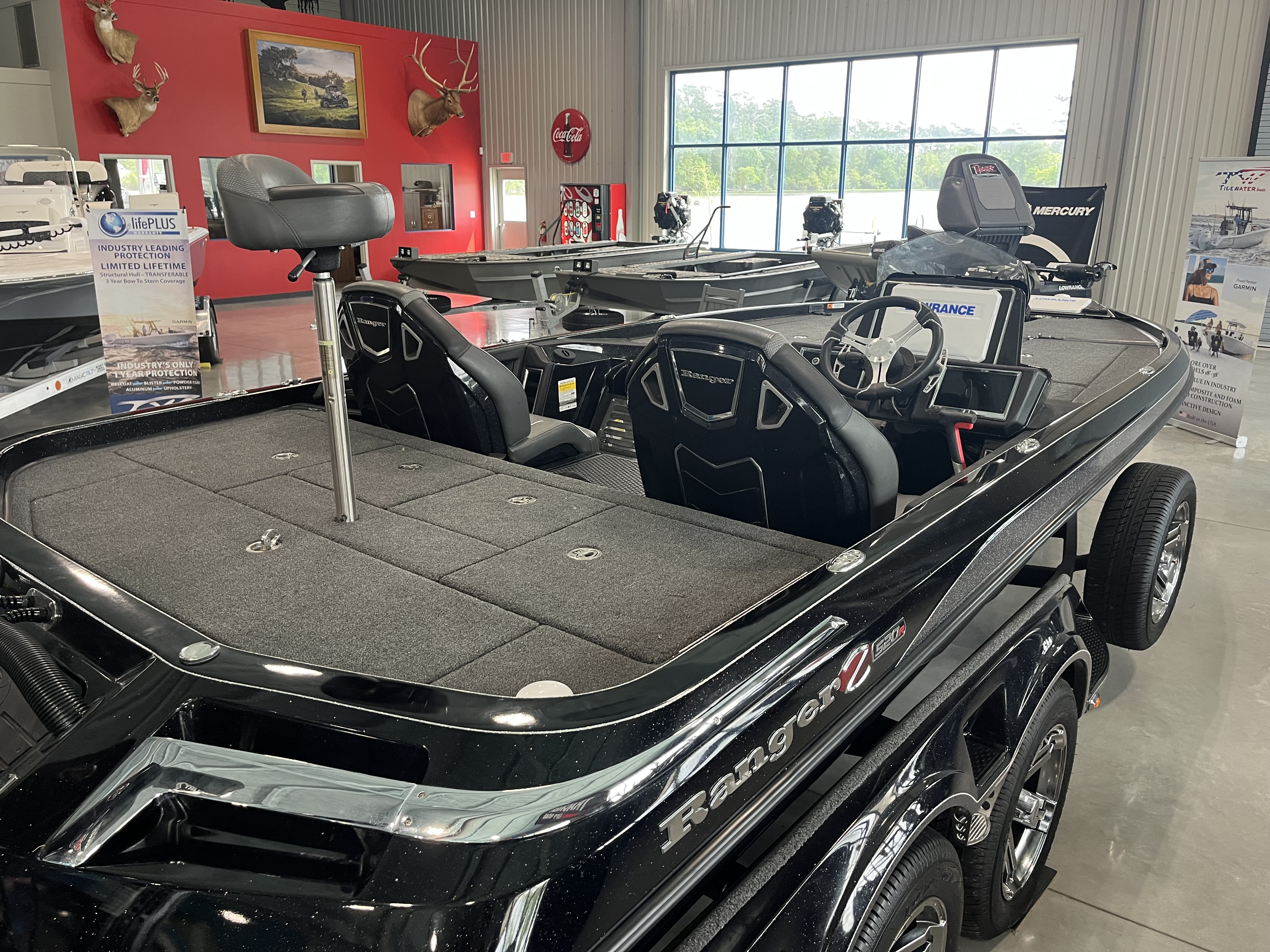

2023 Ranger Boats Z520R Ranger Cup Equipped

THE FAST TRACK TO THE PODIUM

With an unmatched legacy and never-ending drive for domination, we’ve created the next iteration of the go-to for anglers at every level. With the Ranger Cup Equipped package, your Z520R comes with pro-preferred, factory-rigged add-ons that let you hit the water running—and saves you a little coin, too.

The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche “C” hull, digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end.

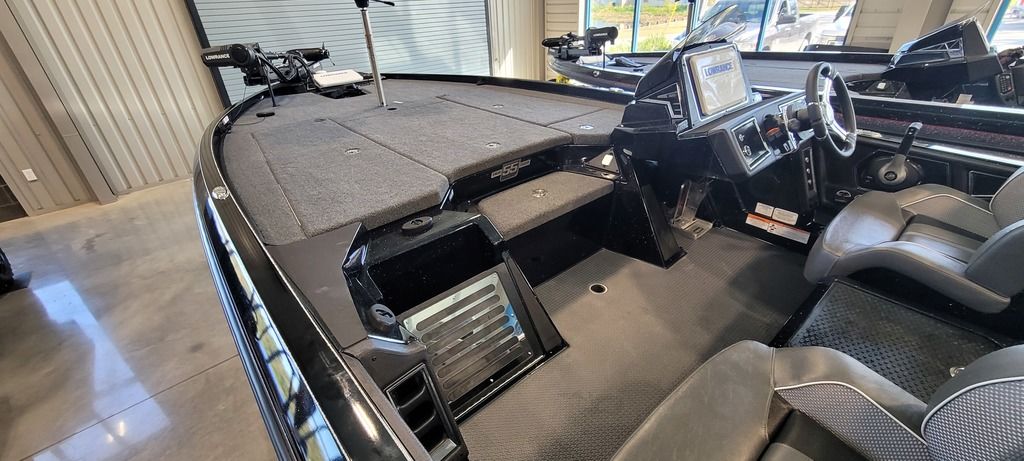

Every appreciable element of the cockpit, decks, and storages has been revamped to complement the enhanced performance of the R Series. We’ve also gone to great lengths to incorporate more standard technology into the R Series to not only raise the bar for the industry, but to give you greater convenience and peace of mind.

Features may include:

• Lowrance Ghost 36V trolling motor 47"

• Three lithium trolling motor batteries

• Lowrance® HDS-12 LIVE at bow & console

• Ranger® RIDE System, integrating full-boat control and monitoring via 9" touchscreen

CUSTOM DETAILS

• Special 55th Anniversary badging

• 3 Level rod shelves port rod locker

• 2 Level rod shelves STBD rod locker

• Power Ventilation Rod Storage™

• Integrated rod and tackle management system

• Double wall insulated cooler (10 gal) w/ drain

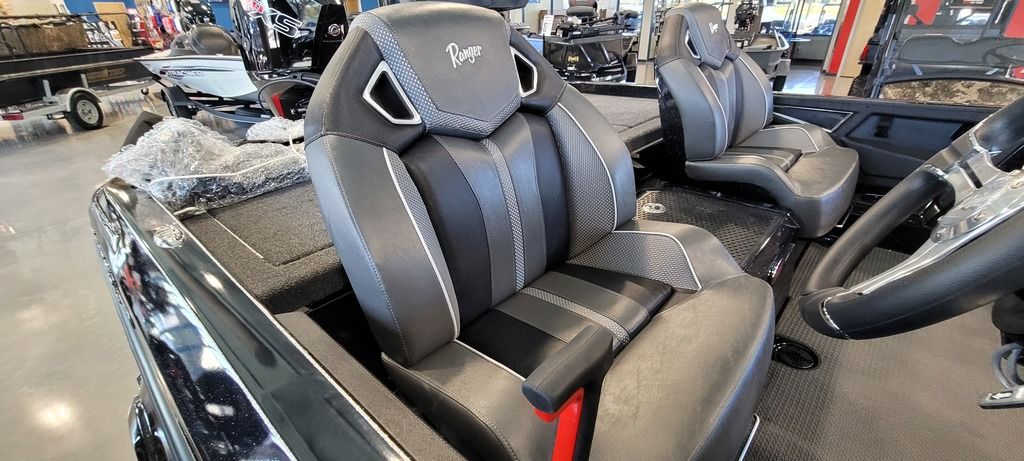

• Stainless steel seat bases

• Line spooling station under aft lid

ELECTRONICS

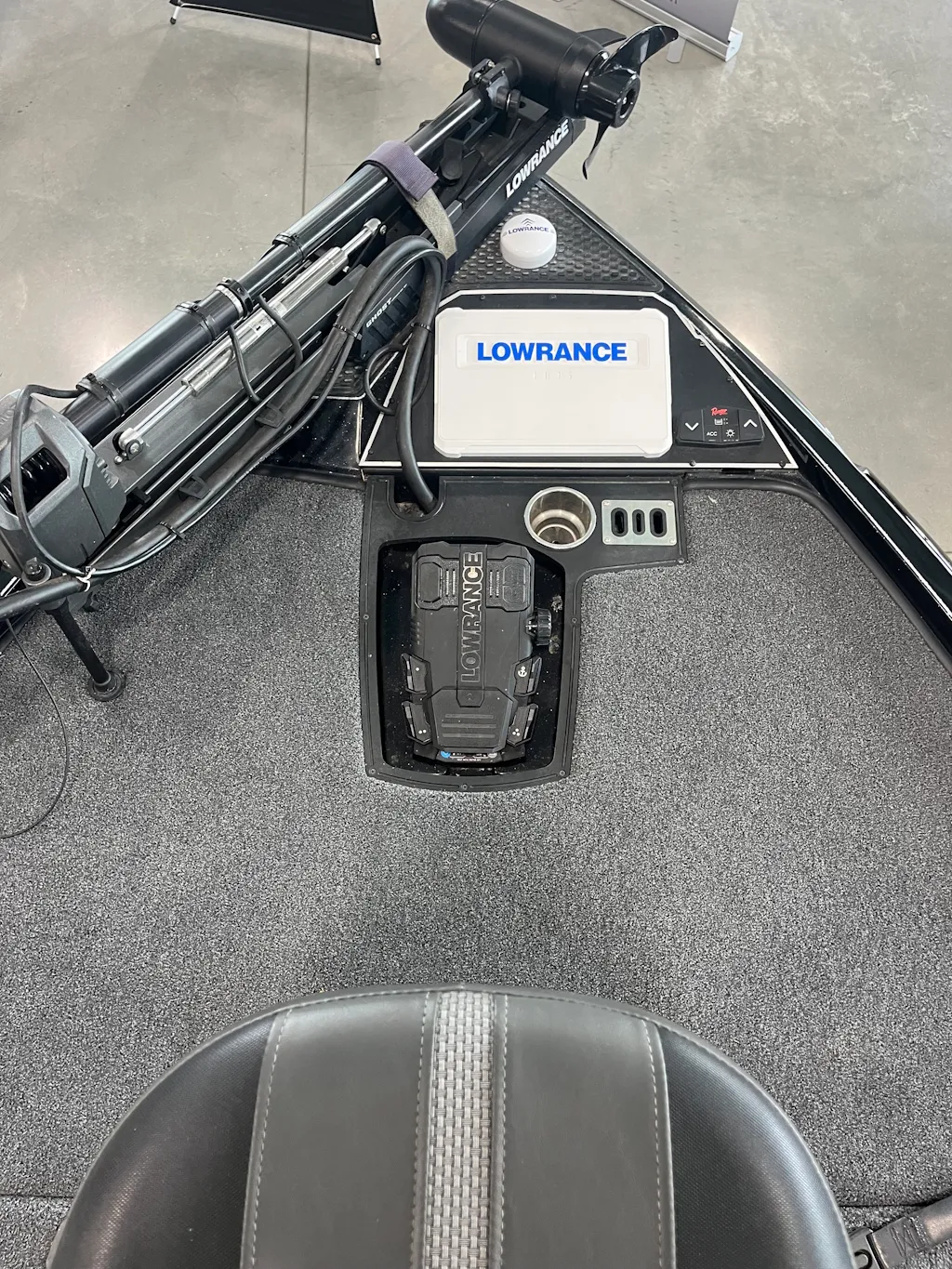

• Lowrance® HDS-12 LIVE w/ active target transducer at bow

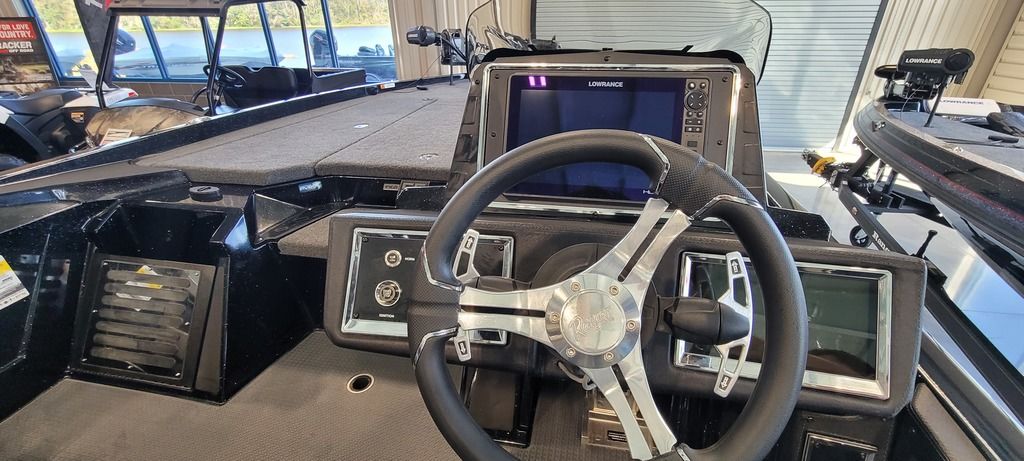

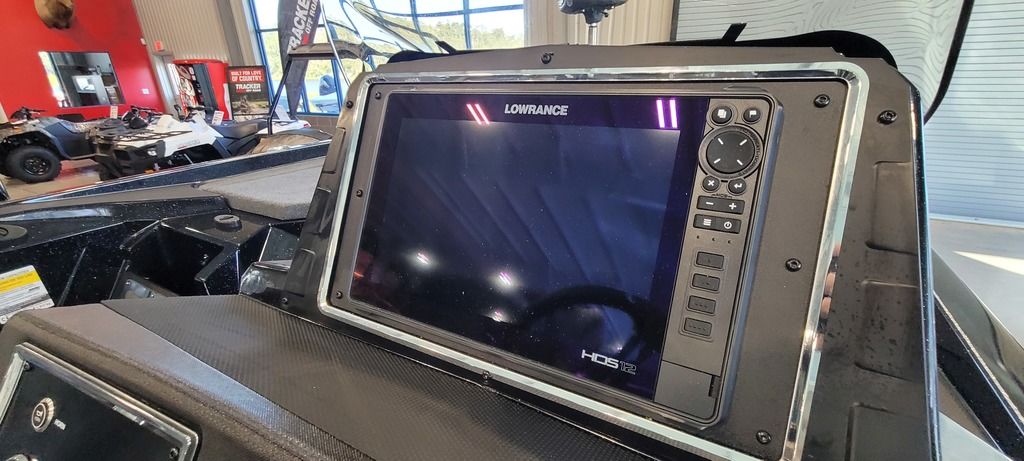

• Lowrance® HDS-12 LIVE w/ active imaging at console

• On-board Dual Pro™ charger, 15 x 4, auto detect lithium capable

• Push to Start Ignition system with proximity keyfob

• New Digital switching at bow with foot activated trim buttons

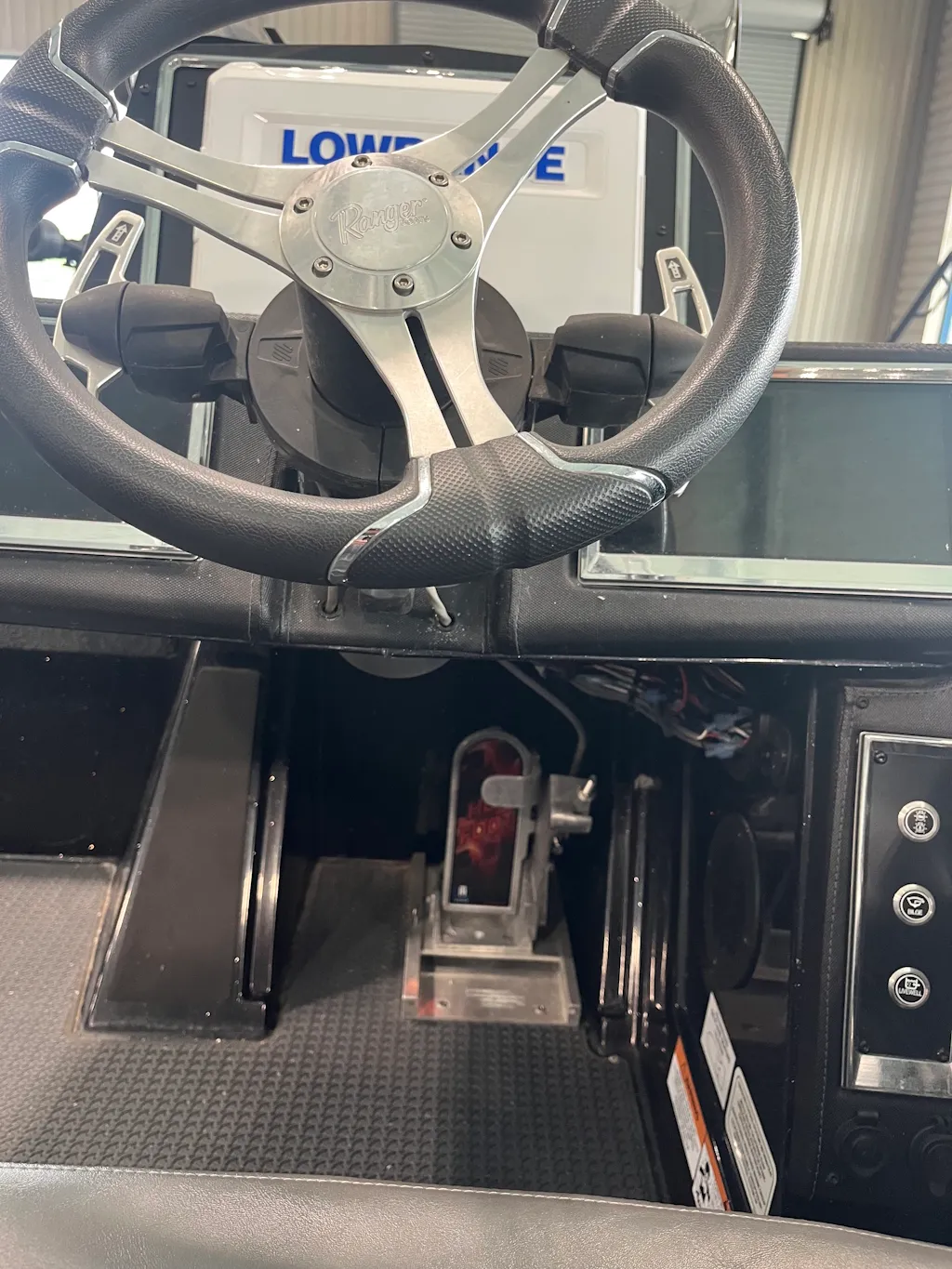

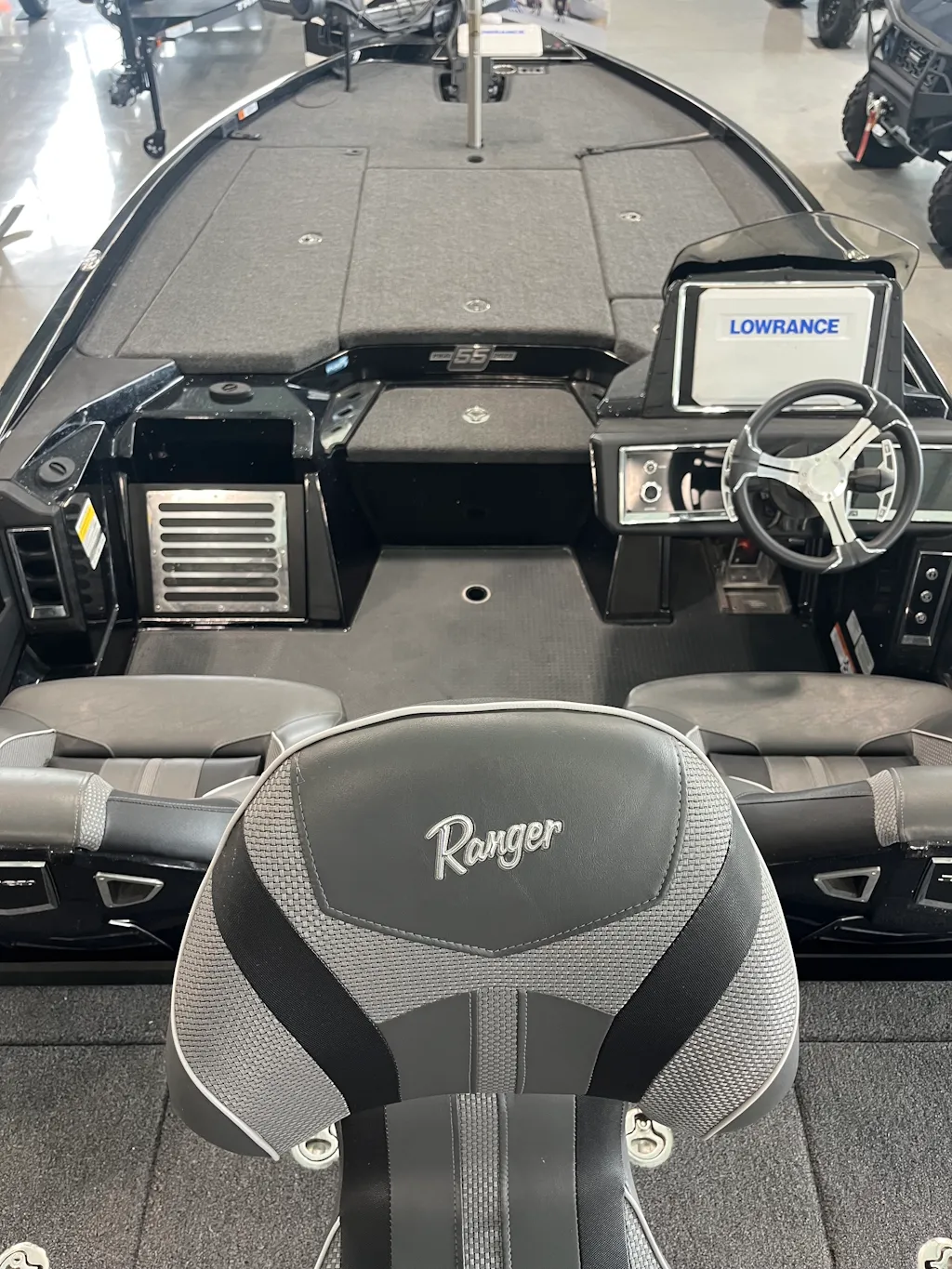

• Console panel w/ Ranger® RIDE System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen

POWER/PERFORMANCE

• AGM starting battery w/ tray

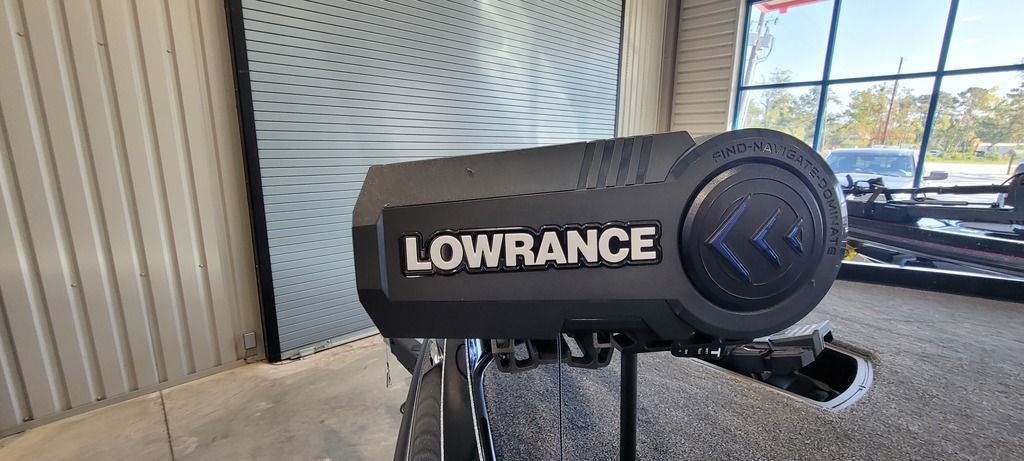

• 47” Lowrance Ghost 36V trolling motor

• High performance stainless steel prop

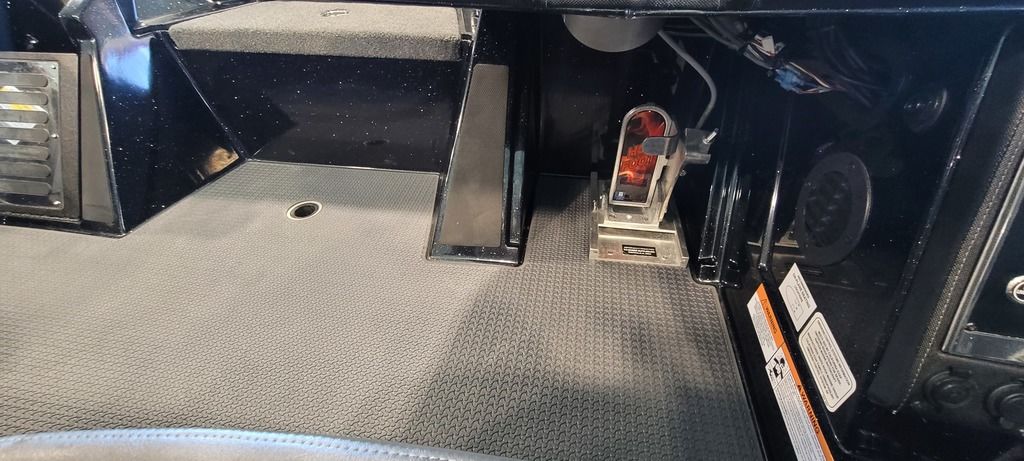

• Flush-mounted remote throttle control

• (3) RB80 lithium trolling motor batteries

• Foam-filled unitized 1 pc fiberglass stringer system

• Ranger I Beam Pultruded Fiberglass transom

• Manual 10" setback plate

SAFETY/COMFORT

• Upright, level flotation

• Fire extinguisher & horn

• Tinted windshield(s)

• Pop-up tie cleats (drivers side cleat for easy tie up STD)

• Integrated grab handles

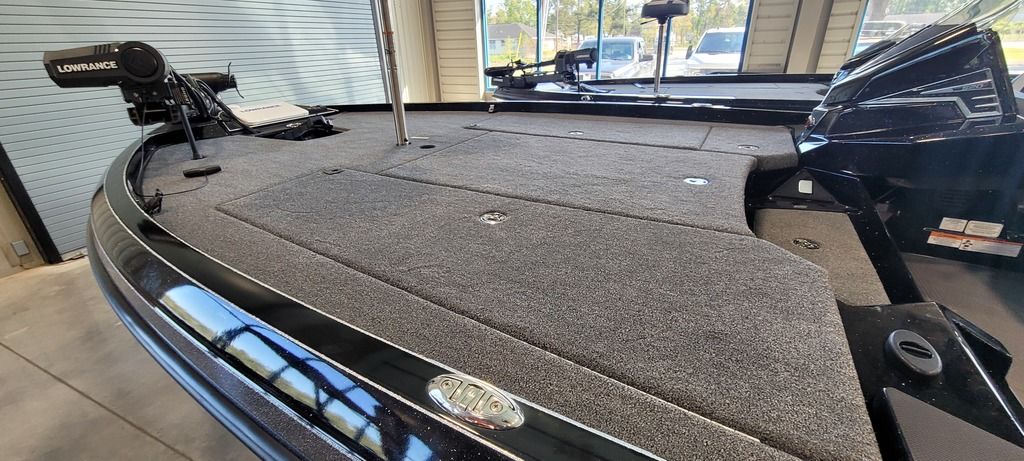

• Skid resistant material on bow

• Automatic and manual bilge pump

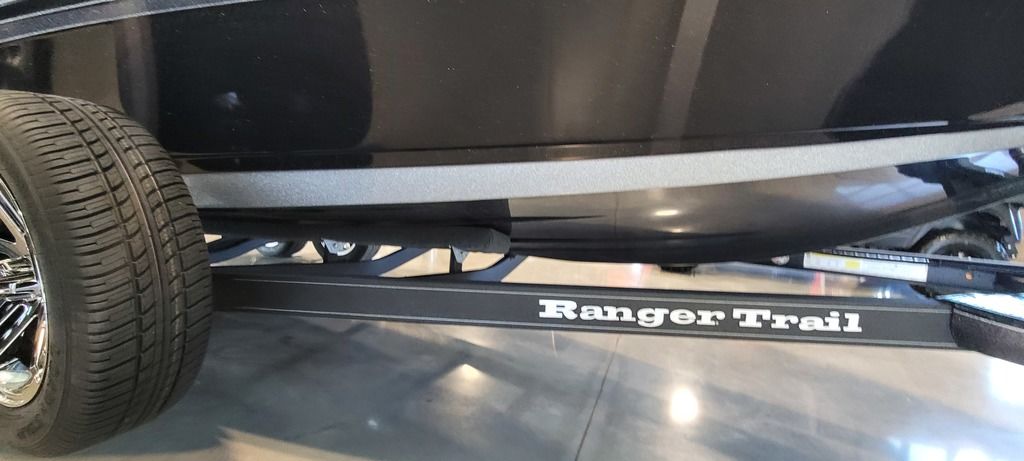

TRAILER

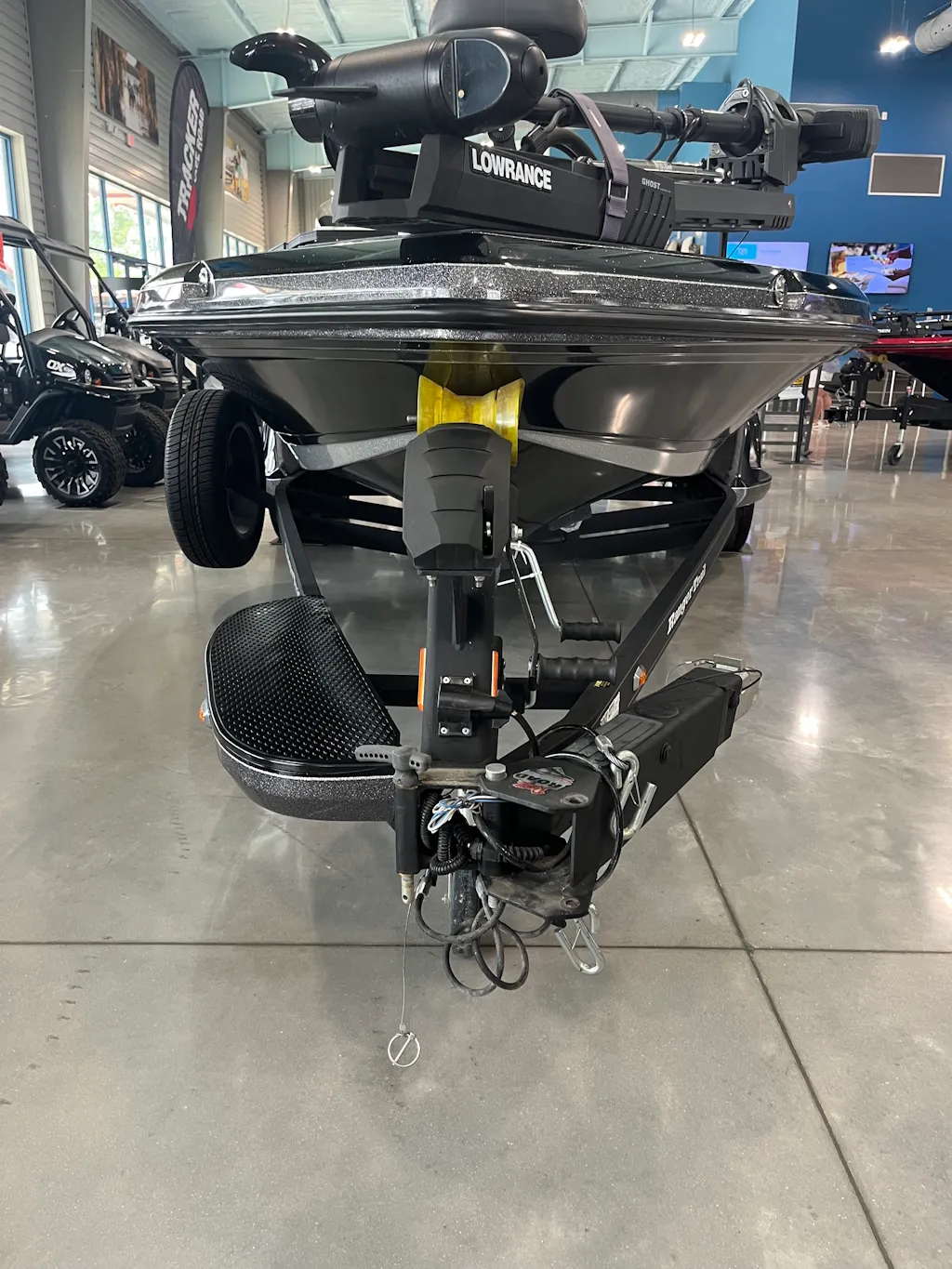

• Tandem axle trailer

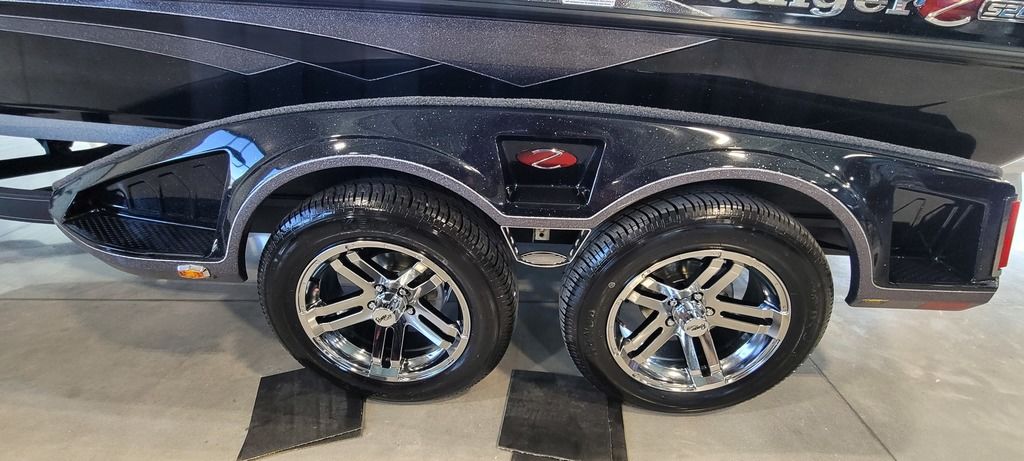

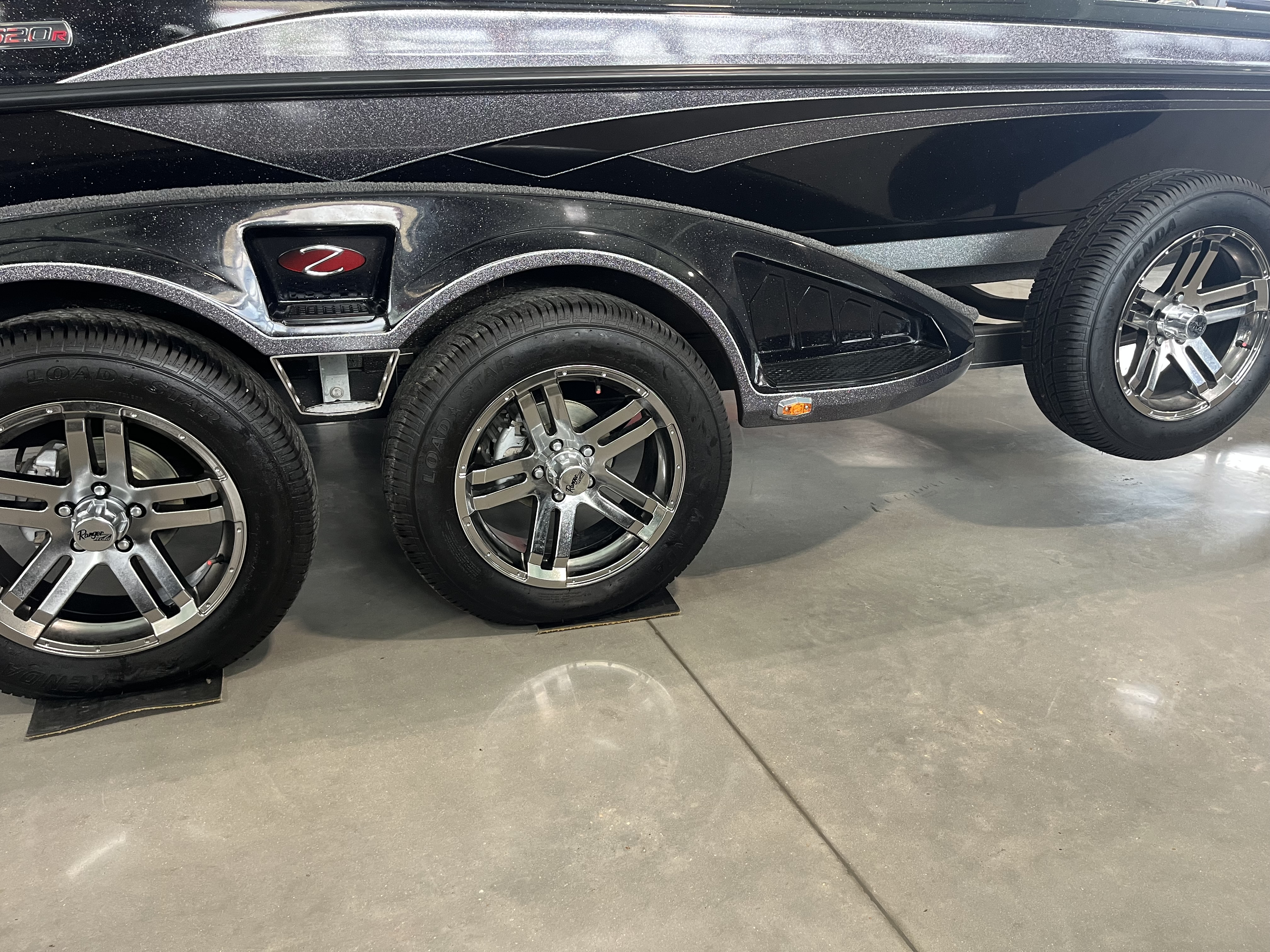

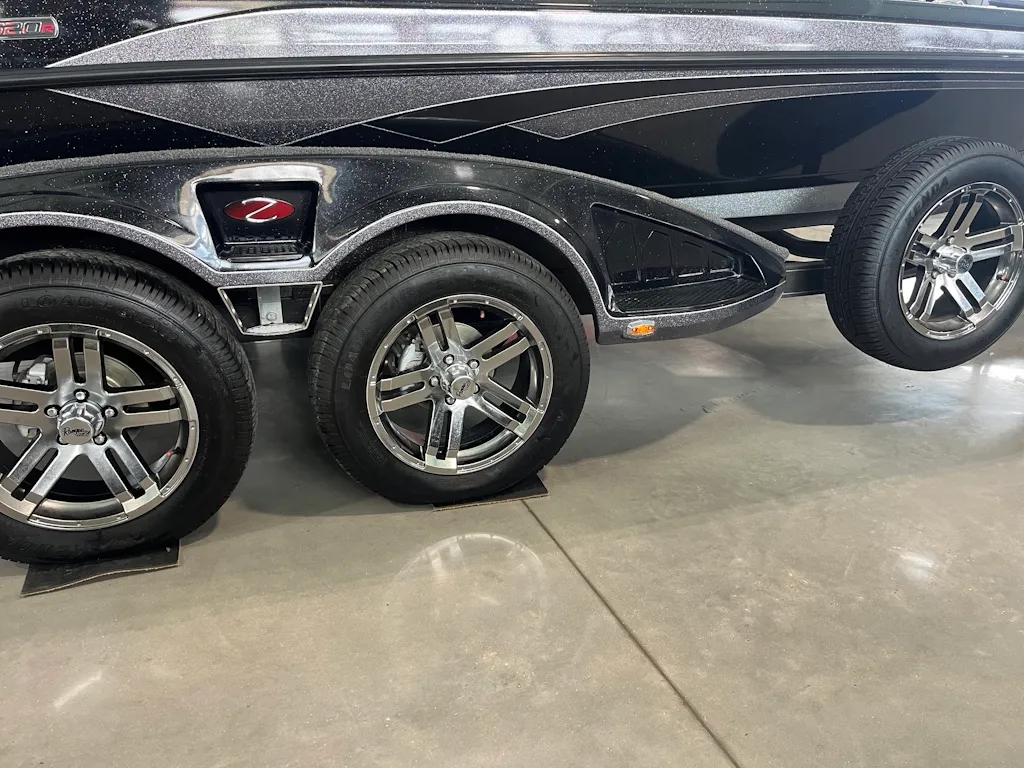

• 17" black chrome Challenger wheels

• Matching fiberglass fenders w/ step pads

• Hydraulic surge disc brakes

• Swing-away tongue

• Center swing jack (black powder coated)

• NMMA®/NATM certified

2023 Ranger Boats Z520R Ranger Cup Equipped Base

Vehicle Information

• Year: 2023

• Make: Ranger Boats

• Model: Z520R Ranger Cup Equipped

• Trim: Base

• Type: Fishing

Dimensions

• Length: 20 ft 11 in (6.38 m)

• Engine Shaft Length: 20 in (50.8 cm)

• Approx. Length on Trailer (Motor Down): 27 ft 1 in (8.25 m)

• Approx. Length on Trailer (Motor Down / Swing Tongue Open): 25 ft (7.62 m)

• Width on Trailer: 102 in (2.59 m)

• Beam: 96 in (2.44 m)

• Interior Depth (Max): 22 in (55.88 cm)

Storage (Rod Boxes)

• Port Rod Box: 8 ft (2.44 m)

• Center Row 1 Rod Box: 8 ft (2.44 m)

• Center Row 2 Rod Box: 7 ft 6 in (2.29 m)

Capacities

• Fuel Capacity: 54 gal (204.39 L)

• Rear Livewell Capacity: 31 gal (117.34 L)

• Seating Capacity: 5 Persons

• Maximum Capacity (Person, Motor & Gear): 1,650 lb (748.43 kg)

Weights

• Approximate Boat Weight: 1,850 lb (839.15 kg)

• Trailer GVWR: 5,400 lb (2,449.4 kg)

Engine

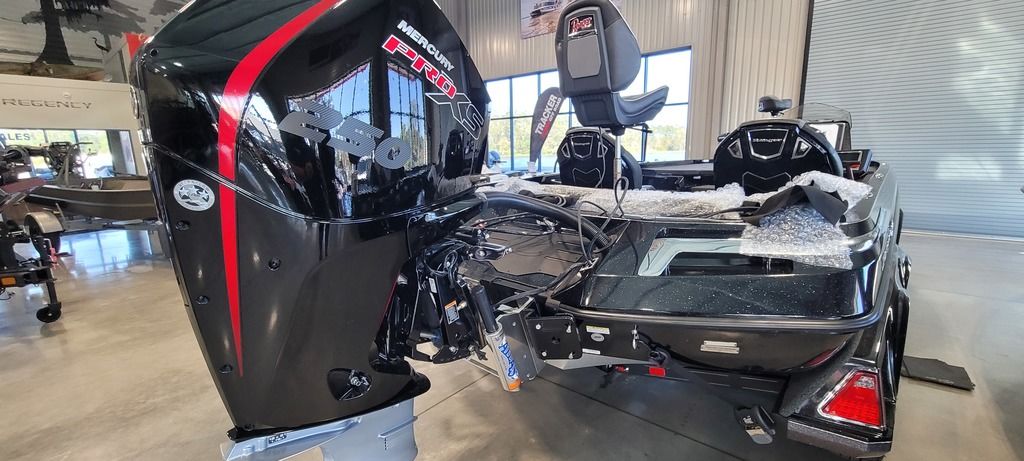

• Maximum Recommended Power: 250 HP
